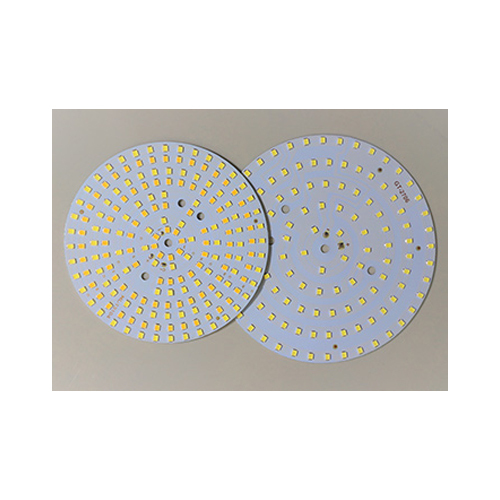

LED Flood Light PCB

Get a Price/Quote

MOQ : 100 Pieces

LED Flood Light PCB Specification

Hole Size
0.2 mm - 0.5 mm

Voltage Endurance
250V - 500V

Min. Line Width
0.15 mm

Board Type
Rigid

Test
100% Electrical Test

Soldermask
Green / White

Insulation Resistance
>10^12

Impedance
Controlled (As per Design)

Silkscreen
White / Black

Min. Line Spacing
0.15 mm

Flame Resistance Level
UL94-V0

Product Type
LED Flood Light PCB

Base Material
FR4 Epoxy Glass

Surface Finish
HASL / ENIG

Copper Thickness
35 m (1 oz)

Board Thickness
1.6 mm

Color
White

Panel Size
Customized or Standard (as per requirements)

Sensor Switch
Optional

Electrical Components
Surface Mounted Devices (SMD LEDs, Resistors, Capacitors)

Number Of Layers
Single Layer / Double Layer

PCB Shape
Rectangular / Custom

Weight
Approx. 20-40g (as per size and layers)

Lead Free
Yes (RoHS Compliant)

Compatibility
Compatible with High Power LEDs

Edge Finish
Smooth, CNC Routed

Operating Temperature Range
-20C to +70C

Assembly Type
SMT/DIP

Storage Humidity
10%-60% RH

Packing
Anti-static Bag / Bubble Wrap

Application
Outdoor/Indoor LED Flood Light Fixtures

LED Flood Light PCB Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About LED Flood Light PCB

Experience the extraordinary with our LED Flood Light PCB - meticulously engineered to deliver ephemeral brilliance for both outdoor and indoor environments. Boasting a lavish range of customizable shapes and sizes, it harmonizes seamlessly with high power LEDs and supports both SMT and DIP assembly types. Each PCB is crafted from RoHS-compliant, lead-free FR4 epoxy glass, featuring unbeatable durability from -20C to +70C. Choose from refined surface finishes, precise edge treatment, and impeccable storage safety, making this PCB a perfect fit for demanding, high-performance lighting applications.

LED Flood Light PCB: Versatile Application and Unmatched Flexibility

Designed for both specific and general use, the LED Flood Light PCB is ideal for plant lighting, architectural illumination, and security flood lights. Its customizable panel size and robust build mean it adapts to individual project requirements seamlessly. Whether used in industrial premises or aesthetic outdoor spaces, this PCB guarantees exceptional performance, supporting high-efficiency LEDs with stable electrical characteristics, making it a reliable backbone for a wide range of lighting scenarios.

Supply Capacity and Shipping: Ensuring Smooth Goods Transport

We pride ourselves on significant supply ability for the LED Flood Light PCB, catering efficiently to bulk requirements. Goods are shipped from premier Indian FOB ports, streamlining your expenditure on import logistics. Samples are available upon request, allowing you to evaluate quality before making an investment. Every consignment is securely packaged in anti-static bags or bubble wrap, ensuring safe transit and optimal condition on delivery.

FAQ's of LED Flood Light PCB:

Q: How customizable is the LED Flood Light PCB for unique lighting requirements?

A: The LED Flood Light PCB offers remarkable customization options, including panel size, shape, the number of layers, silkscreen color, and sensor switch integration, making it easily adaptable to both standard and specialized lighting projects.

Q: What is the benefit of choosing a RoHS-compliant, lead-free PCB?

A: Opting for a RoHS-compliant, lead-free PCB promotes environmental safety and compliance with international standards, while also ensuring the health and safety of users and installers.

Q: Where can the LED Flood Light PCB be effectively used?

A: This PCB is suitable for both indoor and outdoor LED flood light fixtures, including gardens, warehouses, stadiums, building facades, and plant growth applications, thanks to its robust construction and reliable performance range.

Q: What assembly processes does this PCB support?

A: The PCB is compatible with both SMT (Surface Mount Technology) and DIP (Dual In-line Package) assembly types, providing flexibility during the component soldering process.

Q: How does the PCB ensure durability under varying environmental conditions?

A: With an operating temperature range of -20C to +70C, a smooth CNC-routed edge finish, and advanced flame resistance level UL94-V0, the PCB demonstrates exceptional endurance and longevity regardless of external conditions.
