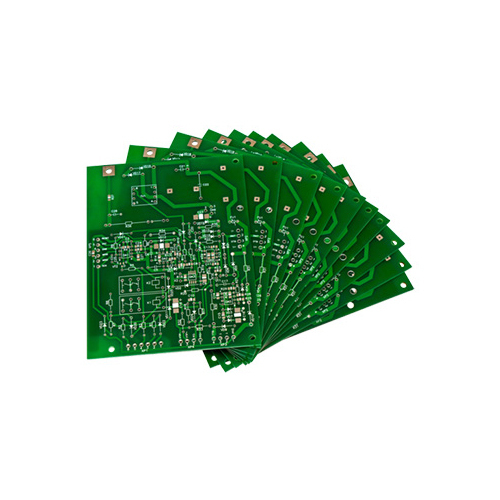

Double Sided PCB

Get a Price/Quote

MOQ : 100 Pieces

Double Sided PCB Specification

Test
100% Electrically Tested

Min. Line Spacing
0.1 mm

Impedance
Controlled impedance available on request

Hole Size
Minimum drill diameter 0.2 mm

Soldermask
Green (default), available: Red, Blue, Black, Yellow

Silkscreen
White (default)

Min. Line Width
0.1 mm

Voltage Endurance
1,500V/min.

Flame Resistance Level
UL94V-0

Insulation Resistance
>10^12

Board Type
FR4 Double Sided PCB

Product Type
Double Sided PCB

Base Material
FR-4, optional: CEM-1, CEM-3

Surface Finish
HASL (Lead Free/Lead), ENIG, OSP, available on request

Copper Thickness
1 oz (standard), customizable from 0.5 oz to 3 oz

Board Thickness
1.6 mm (standard), available 0.8 mm to 3.2 mm

Color
Green (default), optional: Blue, Black, Red, White

Panel Size
up to 500 mm x 600 mm, customization available

Electrical Components
Support for through-hole and SMD mounting

Number Of Layers
2 Layers

Package Type
Vacuum Sealed, Anti-static Packaging

Thermal Conductivity
0.3 W/mK - 0.6 W/mK

Max Copper Weight
Up to 3 oz

Glass Transition Temperature (Tg)
135C - 170C

Board Warpage
0.7%

Application
Consumer Electronics, Industrial, Medical Devices, Automotive

Edge Plating
Optional

Operating Temperature Range
-40C to 130C

Surface Roughness
0.4 m

Lead Time
5-7 working days (standard), expedited available

Double Sided PCB Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
5-7 Days

Main Domestic Market
All India

About Double Sided PCB

Elevate your electronics with this acclaimed Double Sided PCB, renowned for its splendid performance and exceptional durability. Featuring unparalleled surface roughness at 0.4 m and a robust copper weight customizable up to 3 oz, this PCB stands out for applications demanding reliability-from consumer electronics to automotive and medical devices. Grab this vacuum-sealed, anti-static packaged solution, engineered on FR-4 base (with alternative options) and available in a marvelous selection of colors. Benefit from unrivaled electrical testing and customized specs. Lead times are unprecedented at just 5-7 working days-expedited available. Markdown your project workflow with a truly versatile and premium PCB choice from India.

Double Sided PCB: Features and Competitive Advantages

Crafted for superior functionality, this double sided PCB offers controlled impedance, splendid soldermask color choices, and edge plating options. Its 0.1 mm fine trace design, UL94V-0 flame resistance, and impressive thermal stability make it a premium selection. With a minimum hole size of 0.2 mm and support for both through-hole and SMD components, the board serves consumer, industrial, automotive, and medical sectors, promising reliability and broad application utility-your projects deserve nothing less.

FOB Port, Delivery & Domestic Service Advantage

Our double sided PCBs are shipped from accredited Indian ports, ensuring smooth logistics and fast delivery. List price structures guarantee affordable options, with standard lead time at just 5-7 working days and premium expedited services available. The main domestic market covers all major Indian hubs, ensuring efficient local support and accessibility. Engineered to meet your deadline-driven demands, our delivery process offers unprecedented peace of mind and project continuity-grab your quality solution with confidence.

FAQ's of Double Sided PCB:

Q: How customizable are the copper thickness and board dimensions for this double sided PCB?

A: Copper thickness can be tailored from 0.5 oz to 3 oz, while board thickness is configurable between 0.8 mm and 3.2 mm. Panel sizes can reach up to 500 mm x 600 mm, meeting diverse project requirements.

Q: What packaging methods are used to ensure safe delivery of the PCB?

A: The PCBs come vacuum-sealed in anti-static packaging, providing robust protection during transit and safeguarding against moisture and static damage.

Q: Where can these PCBs be effectively used?

A: Designed for versatility, these double sided PCBs suit a range of fields, including consumer electronics, industrial systems, medical devices, and automotive applications.

Q: What are the surface finish options and how do they benefit the end product?

A: You can choose from HASL (Lead-Free/Lead), ENIG, or OSP finishes on request. These finishes enhance solderability, improve lifespan, and meet a variety of manufacturing standards.

Q: When can I expect delivery, and is expedited shipping available?

A: Standard lead time is 5-7 working days. For urgent needs, expedited shipping options are available upon request, ensuring timely project completion.

Q: What safety and quality standards do these PCBs meet?

A: Each PCB is 100% electrically tested, features a flame resistance rating of UL94V-0, and boasts insulation resistance greater than 1012, guaranteeing reliable performance and safety.
